| Specification | Details |
|---|---|
| Model | PVPAFAD |
| Type | Pipe Away Breather Valve cum Flame Arrester |
| Operation | Dead Weight Loaded |
| Valve Size | 2" to 12" (DN50–DN300) |
| Body Material | Carbon Steel, Stainless Steel (SS304/SS316), Aluminium |
| Disc Material | SS304, SS316, Aluminium |
| End Connection | Flanged (ANSI / DIN / API Standards) |
| Pressure Setting | 25 to 500 mmWC |
| Temperature Range | -20°C to +80°C (Higher on Request) |
| Media | Air, Vapors, Flammable Gases |
| Flame Arrester | Integrated Flame Arrester |
| Sealing | Soft Seat / Metal-to-Metal |
| Application | Storage Tanks, Chemical, Petrochemical, Pharmaceutical & Process Industries |

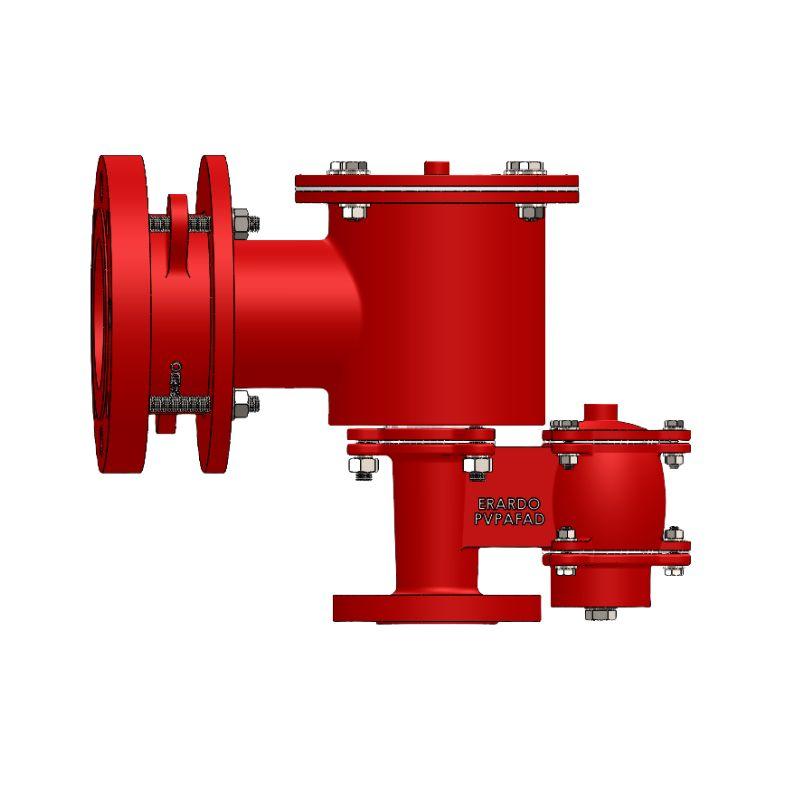

Breather Valve cum Flame Arrester - Pipe Away (Model : PVPAFAD)
A Pipe Away Breather Valve cum Flame Arrester provides pressure and vacuum relief while preventing flame propagation into storage tanks. It is designed to safely divert vented vapors to a remote location or scrubber, making it ideal for hazardous and environmentally sensitive applications.
Key Features
- Combines pressure/vacuum relief and flame protection
- Pipe-away design for safe vapor discharge
- Dead weight loaded, direct-acting operation
- Corrosion-resistant construction
- Low maintenance and reliable performance
- Suitable for flammable vapors and gases
| Specification | Details |
|---|---|
| Model | PVPAFAD |
| Type | Pipe Away Breather Valve cum Flame Arrester |
| Operation | Dead Weight Loaded |
| Valve Size | 2" to 12" (DN50–DN300) |
| Body Material | Carbon Steel, Stainless Steel (SS304/SS316), Aluminium |
| Disc Material | SS304, SS316, Aluminium |
| End Connection | Flanged (ANSI / DIN / API Standards) |
| Pressure Setting | 25 to 500 mmWC |
| Temperature Range | -20°C to +80°C (Higher on Request) |
| Media | Air, Vapors, Flammable Gases |
| Flame Arrester | Integrated Flame Arrester |
| Sealing | Soft Seat / Metal-to-Metal |
| Application | Storage Tanks, Chemical, Petrochemical, Pharmaceutical & Process Industries |
×
