| Specification | Details |
|---|---|
| Model No. | PVOPD-NB |
| Valve Type | Breather Valve with Nitrogen Blanketing |
| Standard | API 2000 7th Edition |
| Size | 1"–24" (15 NB–600 NB) |
| Body Material | Carbon Steel, SS304, SS316, Aluminium |
| Connection | Flanged / Threaded |
| Pressure Range | 10–700 mmWC |
| Temperature Range | -20°C to +80°C |
| Seal Material | PTFE, Viton, EPDM, Buna-N |
| Media | Air, Nitrogen, Vapors |
| Applications | Storage Tanks, Chemical, Petrochemical & Process Industries |

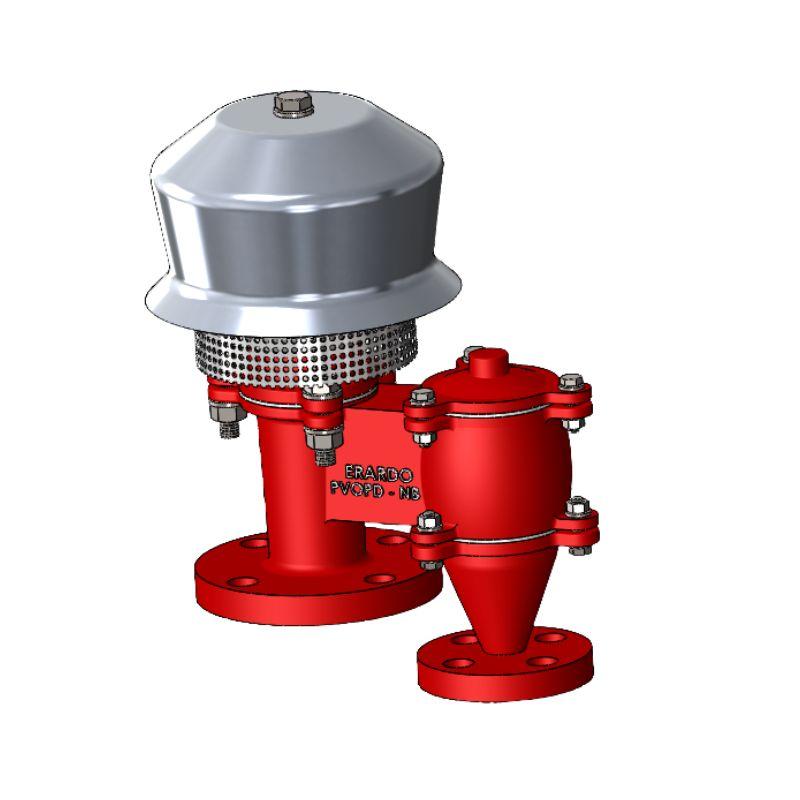

Breather Valve with Nitrogen Blanketing (Model : PVOPD-NB)
The PVOPD-NB Breather Valve with Nitrogen Blanketing protects storage tanks from excess pressure and vacuum while maintaining a nitrogen blanket. It reduces product loss, prevents air ingress, and is manufactured as per API 2000 7th Edition for reliable tank protection.
Key Features
- Nitrogen blanketing provision
- Pressure & vacuum protection
- Low leakage and vapor loss
- High flow capacity
- Low-maintenance design
- Corrosion-resistant construction
- API 2000 compliant
- Available in CS, SS304, SS316 & Aluminium
| Specification | Details |
|---|---|
| Model No. | PVOPD-NB |
| Valve Type | Breather Valve with Nitrogen Blanketing |
| Standard | API 2000 7th Edition |
| Size | 1"–24" (15 NB–600 NB) |
| Body Material | Carbon Steel, SS304, SS316, Aluminium |
| Connection | Flanged / Threaded |
| Pressure Range | 10–700 mmWC |
| Temperature Range | -20°C to +80°C |
| Seal Material | PTFE, Viton, EPDM, Buna-N |
| Media | Air, Nitrogen, Vapors |
| Applications | Storage Tanks, Chemical, Petrochemical & Process Industries |
×
