| Parameter | Details |
|---|---|
| Valve Type | Dead Weight Breather Valve |
| Operation | Weight Operated |
| Size Range | 1" to 24" |
| Body Material | Carbon Steel, Stainless Steel, Aluminium, Cast Iron |
| Connection | Flanged (ANSI/DIN/BS) |
| Pressure Range | 10 mmWG to 700 mmWG |
| Temperature Range | -20°C to +80°C |
| Media | Air, Vapour |
| Sealing | Soft Seal / Metallic Seal |
| Application | Storage Tanks & Low-Pressure Vessels |
| Power Requirement | Not Required |
| Standards | API 2000, API 2521 |

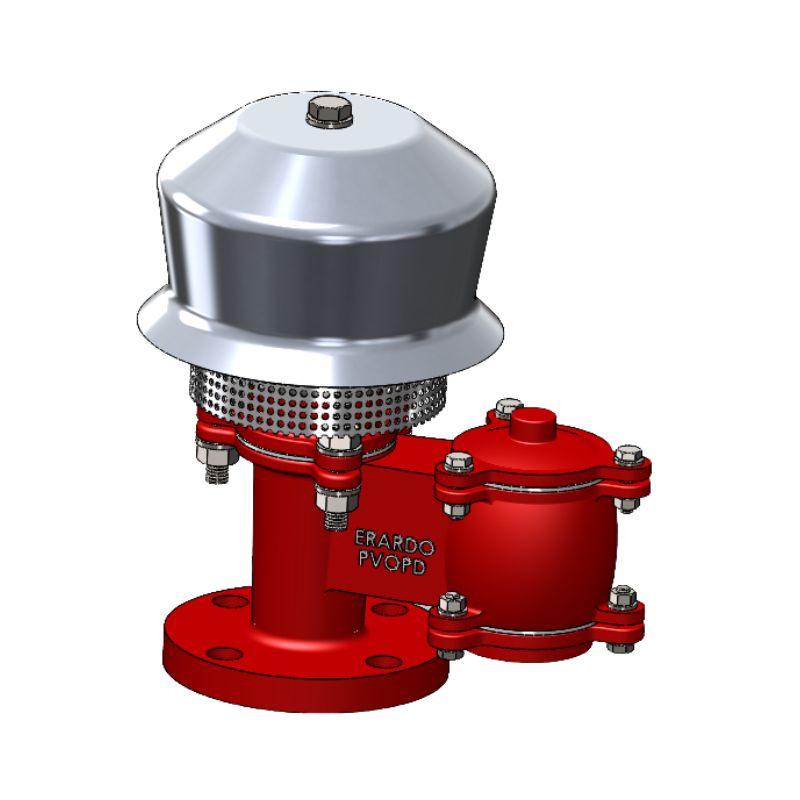

Dead Weight Breather Valve (Open to Atmosphere) Model : PVOPD
The Dead Weight Breather Valve is designed for storage tanks and low-pressure vessels to control pressure and vacuum conditions. It operates automatically without external power and features a leak-proof, corrosion-resistant construction for reliable performance.
Key Features
- Automatic dead weight operation
- No external power required
- Leak-proof construction
- Corrosion-resistant materials
- Low-maintenance design
- Available in multiple sizes and pressure settings
- Suitable for air and vapour service
- Long operational life and reliable performance
| Parameter | Details |
|---|---|
| Valve Type | Dead Weight Breather Valve |
| Operation | Weight Operated |
| Size Range | 1" to 24" |
| Body Material | Carbon Steel, Stainless Steel, Aluminium, Cast Iron |
| Connection | Flanged (ANSI/DIN/BS) |
| Pressure Range | 10 mmWG to 700 mmWG |
| Temperature Range | -20°C to +80°C |
| Media | Air, Vapour |
| Sealing | Soft Seal / Metallic Seal |
| Application | Storage Tanks & Low-Pressure Vessels |
| Power Requirement | Not Required |
| Standards | API 2000, API 2521 |
×
