| Parameter | Details |
|---|---|
| Type | Pipe Away Breather Valve |
| Operation | Dead Weight Operated |
| Media | Air, Gas, Vapor |
| Size Range | 2" to 12" |
| Body Material | Cast Iron, Carbon Steel, SS304, SS316, Aluminium |
| Connection | Flanged (ASA 150 / BS10) |
| Pressure Setting | 0.5 to 10 PSI |
| Temperature | -20°C to 60°C |
| Sealing | Metal-to-Metal / PTFE / Neoprene |
| Installation | Vertical |
| Power Supply | Not Required |
| Application | Storage Tanks, Process Vessels |
| Standards | API 2000, API 2521 |

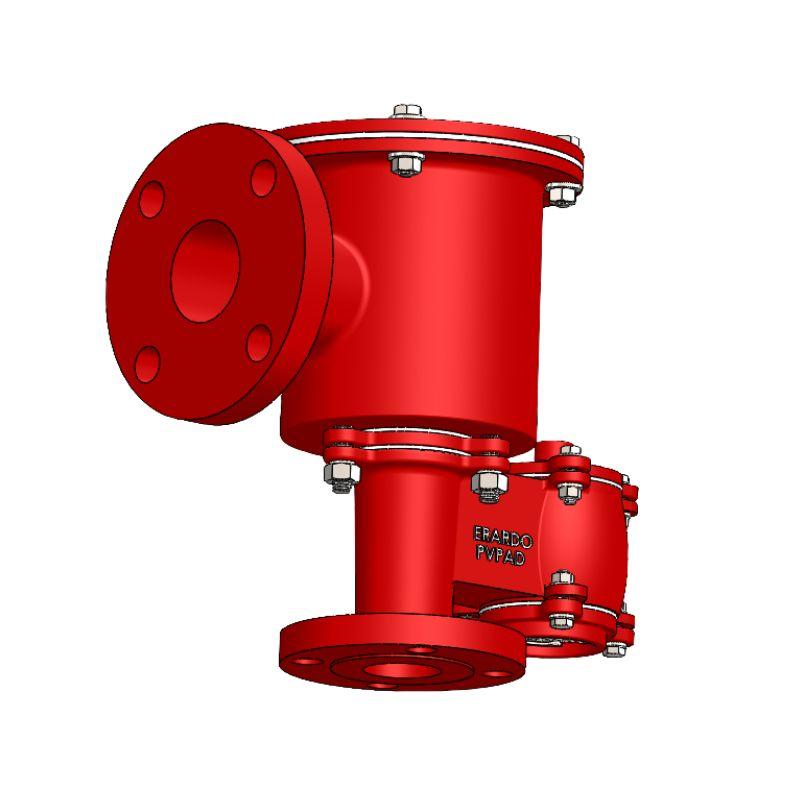

Dead Weight Breather Valve (Pipe Away) Model : PVPAD
The Pipe Away Breather Valve is designed to safely discharge vapors, gases, and air from storage tanks and process vessels to a designated recovery or treatment system. Its dead-weight operated mechanism provides accurate pressure and vacuum relief while ensuring controlled venting and dependable tank protection.
Key Features
- Safe vapor discharge through pipeline connection
- Accurate pressure and vacuum relief
- Dead weight-operated mechanism
- Suitable for vapor recovery systems
- Corrosion-resistant construction
- Multiple materials and sealing options
- Easy installation and servicing
- Reliable performance in industrial applications
| Parameter | Details |
|---|---|
| Type | Pipe Away Breather Valve |
| Operation | Dead Weight Operated |
| Media | Air, Gas, Vapor |
| Size Range | 2" to 12" |
| Body Material | Cast Iron, Carbon Steel, SS304, SS316, Aluminium |
| Connection | Flanged (ASA 150 / BS10) |
| Pressure Setting | 0.5 to 10 PSI |
| Temperature | -20°C to 60°C |
| Sealing | Metal-to-Metal / PTFE / Neoprene |
| Installation | Vertical |
| Power Supply | Not Required |
| Application | Storage Tanks, Process Vessels |
| Standards | API 2000, API 2521 |
×
