| Parameter | Details |
|---|---|
| Size | 0.5" to 24" |
| Material | Carbon Steel, SS304, SS316, Aluminium |
| Connection | Flanged / Threaded |
| Gas Group | IIA, IIB, IIC |
| Pressure | Up to 1.2 bar(g) |
| Temperature | -20°C to +60°C |
| Mounting | Horizontal / Vertical |
| Application | Tank Vents & Pipeline Ends |
| Standards | ISO 16852, EN 12874, API 2000 |

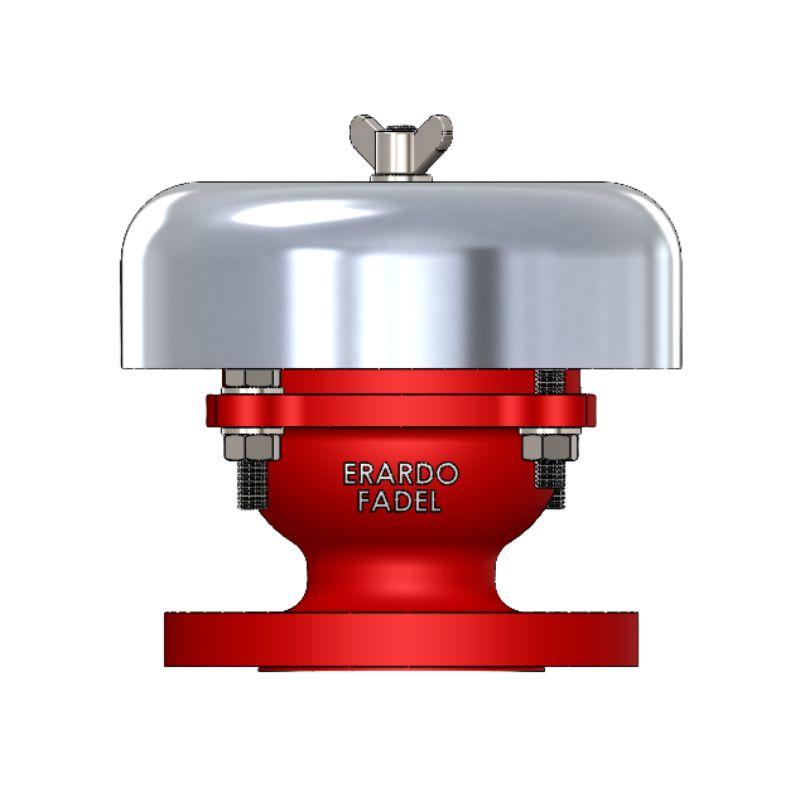

End of Line Deflagration Flame Arrestor (Model : FADEL)
The End of Line Deflagration Flame Arrestor is installed at vent outlets and tank openings to stop flame propagation while allowing safe venting of gases and vapors. It provides reliable protection for storage and process systems handling flammable media.
Key Features
- High flame-quenching efficiency
- Corrosion-resistant construction
- Weather hood protection
- Low-maintenance design
- Suitable for flammable gases and vapors
- Available in multiple sizes and materials
| Parameter | Details |
|---|---|
| Size | 0.5" to 24" |
| Material | Carbon Steel, SS304, SS316, Aluminium |
| Connection | Flanged / Threaded |
| Gas Group | IIA, IIB, IIC |
| Pressure | Up to 1.2 bar(g) |
| Temperature | -20°C to +60°C |
| Mounting | Horizontal / Vertical |
| Application | Tank Vents & Pipeline Ends |
| Standards | ISO 16852, EN 12874, API 2000 |
×
