OS & Y Type Bolted Bonnet Gate Valve
- Home
- Gate Valve
- OS & Y Type Bolted Bonnet Gate Valve
Our Products
Brochures
Technical Specifications
| Parameter | Details |
| Design Standard | API 600 |
| Size Range | 25 mm to 600 mm (1” to 24”) |
| Pressure Rating | Class 150 to 2500 |
| Body Materials | WCB, LCB, WC6, WC9, CF8, CF8M, CF3, CF3M, Alloy 20 |
| Trim Materials | 13% Cr. Steel, Trim 8, SS 304, SS 316, F6 |
| End Connection | Flanged, Welded |
| Operation | Handwheel, Gear, Automation |
| Special Features | Stem Extension, Locking Arrangement |

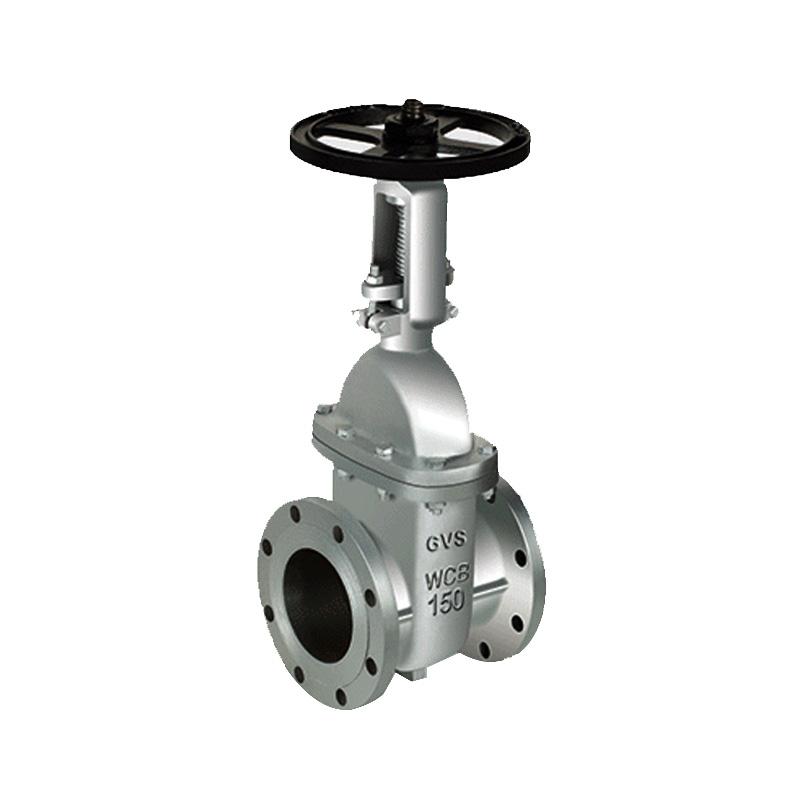

OS & Y Type Bolted Bonnet Gate Valve
The OS & Y Type Bolted Bonnet Gate Valve is designed for dependable shut-off and flow control in industrial applications. Its robust construction ensures long service life, leak-proof performance, and easy maintenance under high-pressure and high-temperature conditions.
Key Features
- OS & Y rising stem design for clear position indication
- Bolted bonnet construction for secure sealing
- Suitable for high-pressure and high-temperature services
- Available in multiple materials and trim options
- Easy operation with handwheel, gear, or automation options
- Durable and low-maintenance design
Technical Specifications
| Parameter | Details |
| Design Standard | API 600 |
| Size Range | 25 mm to 600 mm (1” to 24”) |
| Pressure Rating | Class 150 to 2500 |
| Body Materials | WCB, LCB, WC6, WC9, CF8, CF8M, CF3, CF3M, Alloy 20 |
| Trim Materials | 13% Cr. Steel, Trim 8, SS 304, SS 316, F6 |
| End Connection | Flanged, Welded |
| Operation | Handwheel, Gear, Automation |
| Special Features | Stem Extension, Locking Arrangement |
OS & Y Type Bolted Bonnet Gate Valve
Technical Specifications
| Parameter | Details |
| Design Standard | API 600 |
| Size Range | 25 mm to 600 mm (1” to 24”) |
| Pressure Rating | Class 150 to 2500 |
| Body Materials | WCB, LCB, WC6, WC9, CF8, CF8M, CF3, CF3M, Alloy 20 |
| Trim Materials | 13% Cr. Steel, Trim 8, SS 304, SS 316, F6 |
| End Connection | Flanged, Welded |
| Operation | Handwheel, Gear, Automation |
| Special Features | Stem Extension, Locking Arrangement |
