Two Piece Ball Valve
- Home
- Ball Valve
- Two Piece Ball Valve
Our Products
Brochures
Technical Specifications
| Parameter | Details |
| Size Range | 15 mm to 600 mm |
| Pressure Rating | Class 150 to 2500 |
| Design Standard | EN ISO 17292, API 6D |
| Materials | Carbon Steel, Stainless Steel, Duplex Steel |
| Seat Materials | PTFE, RPTFE, Metallic |
| End Connections | Flanged, Screwed, Welded |
| Operation | Lever / Gear Operated |

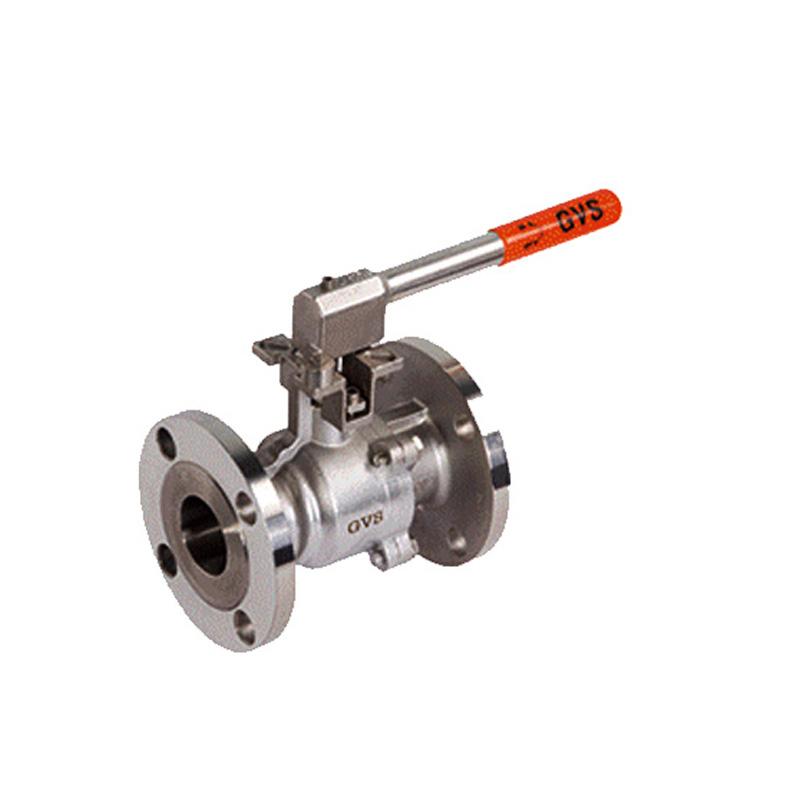

Two Piece Ball Valve
The GVS Two Piece Ball Valve is designed for reliable shut-off and efficient flow control in industrial applications. Featuring a durable split-body construction and full-bore design, it ensures smooth operation, low pressure drop, and easy maintenance. Suitable for oil & gas, chemical, and water treatment industries.
Key Features
- Two-piece body construction
- Full Bore & Regular Port options
- Fire Safe design as per API 607
- Leak-tight sealing performance
- Easy maintenance and long service life
- Lever & Gear operated options
Technical Specifications
| Parameter | Details |
| Size Range | 15 mm to 600 mm |
| Pressure Rating | Class 150 to 2500 |
| Design Standard | EN ISO 17292, API 6D |
| Materials | Carbon Steel, Stainless Steel, Duplex Steel |
| Seat Materials | PTFE, RPTFE, Metallic |
| End Connections | Flanged, Screwed, Welded |
| Operation | Lever / Gear Operated |
Two Piece Ball Valve
Technical Specifications
| Parameter | Details |
| Size Range | 15 mm to 600 mm |
| Pressure Rating | Class 150 to 2500 |
| Design Standard | EN ISO 17292, API 6D |
| Materials | Carbon Steel, Stainless Steel, Duplex Steel |
| Seat Materials | PTFE, RPTFE, Metallic |
| End Connections | Flanged, Screwed, Welded |
| Operation | Lever / Gear Operated |
